NON DESTRUCTIVE TESTING EQUIPMENTS

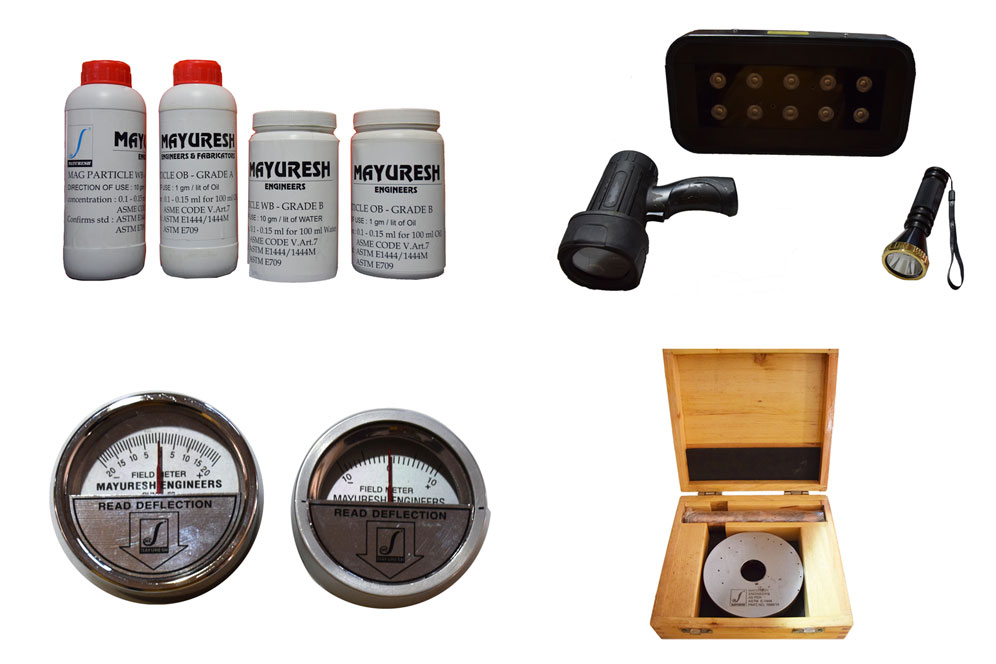

NDT EQUIPMENTS AND NDT EQUIPMENT ACCESSORIES - ( NON DESTRUCTIVE TESTING EQUIPMENTS )

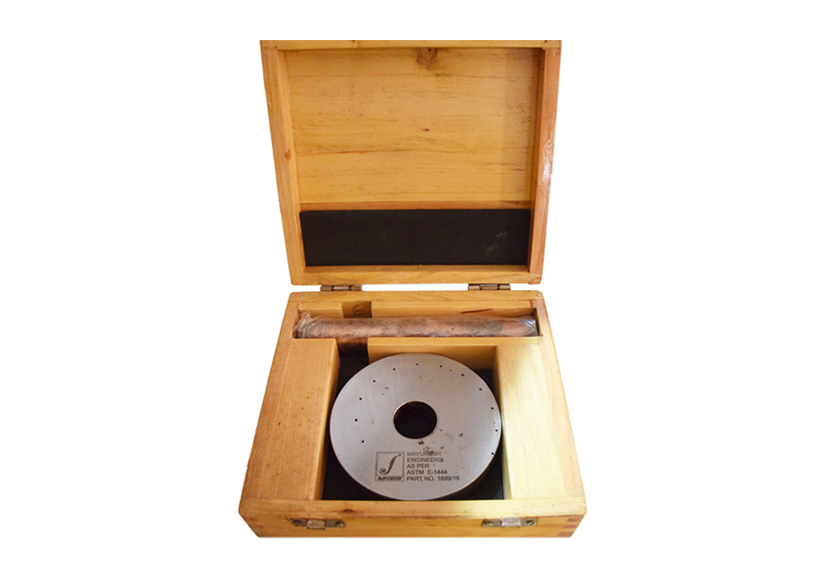

ASTM TEST PIECE



Fabricated as per American Standard Specification ASTM - E 709 - / 85 and SME - Sa - 275, the specimen provides reliable indication for purpose of surface crack detection by the electro - magnetic method. It also provides reliable indication on the quality of magnetic bath and intensity of black light. The specimen can be used for setting optimum parameters for AMP and KAT values for purpose of crack detection. Finally in one quick step it can be utilised to assess the overall performance of the magnetic particle set up of any make.

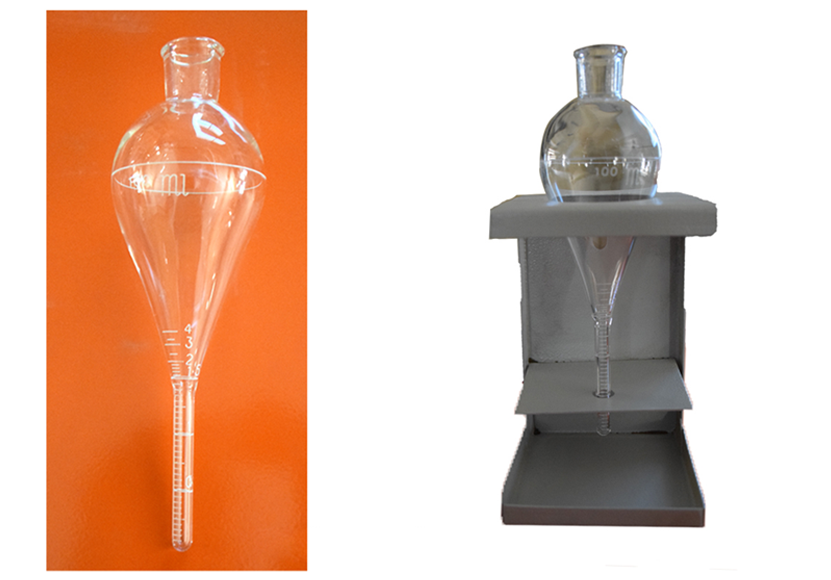

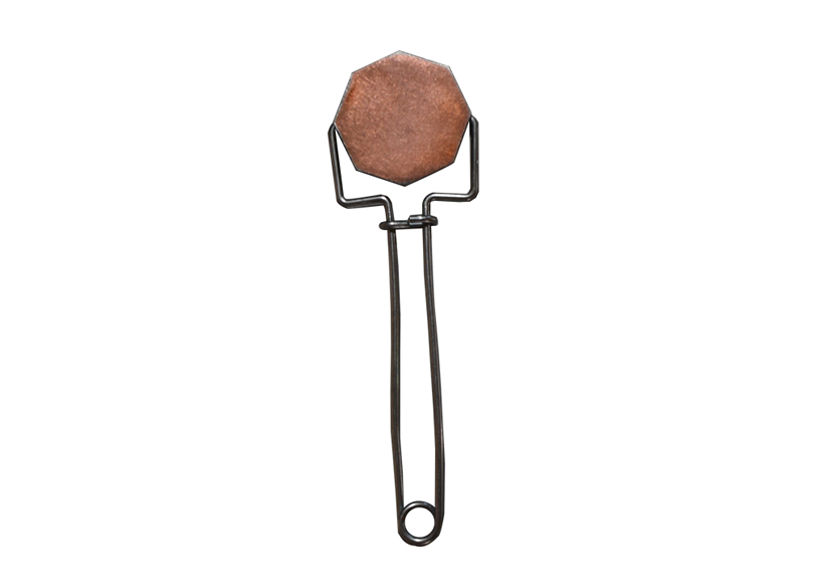

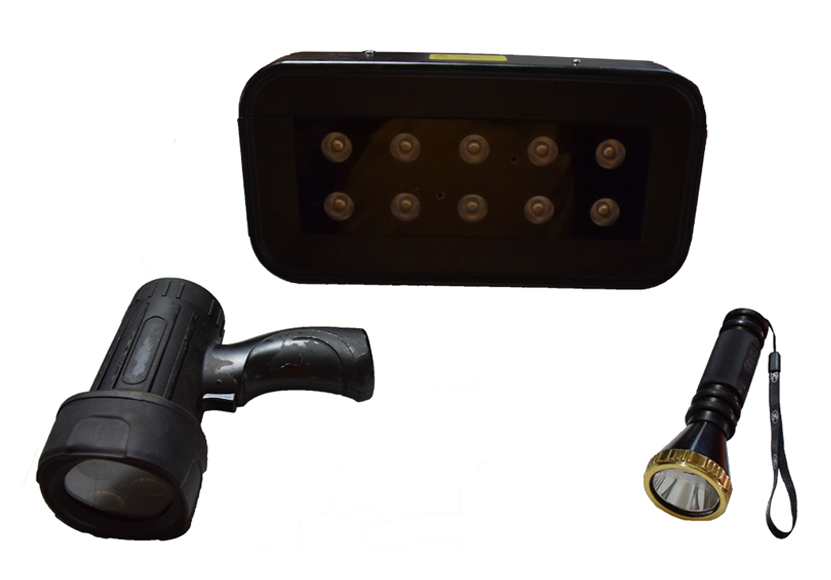

Dry Powder Blower - Spray Bottles - Centrifuge Tube - ASTM Test Piece - BHEL Test Block - High Current Cables - Prods - Plugs - Contact Block - Residual Field Indicator - Light Assembly - Trolley Mk3.




MAGNO - CD5



MAGNO - CD5 is a portable magnetic yoke generating high intensity magnetic field between teh poles when placed over a ferro-mag net-is component. It operates on 230V, 50 cycles AC supply or 24V DC power pack or 24V battery. This simple and light weight applicance is very useful for the detection of surface and near surface cracks during maintenance overhaul of all types of machinery in general. for cross detection of cracks in welds and castings. Since the applicances is free from sparking at contact points. it is particularly useful for delicate components like dies where sparking may be injurious as is often the case with prod appliction. AC YOKE MAY BE USED EVEN FOR DEMAGNETISATION OPERATIONS. The appliance is so versatile that it is useful in a wide range of application. It is operable by one person and dry magnetic powders or the wet magnetic bath of the day light or fluorescent type may be used as desired.

Dry Powder Blower - Spray Bottles - Centrifuge Tube - ASTM Test Piece - BHEL Test Block - High Current Cables - Prods - Plugs - Contact Block - Residual Field Indicator - Light Assembly - Trolley Mk3



MAGNO - CD5

Accessories
Request A Quote

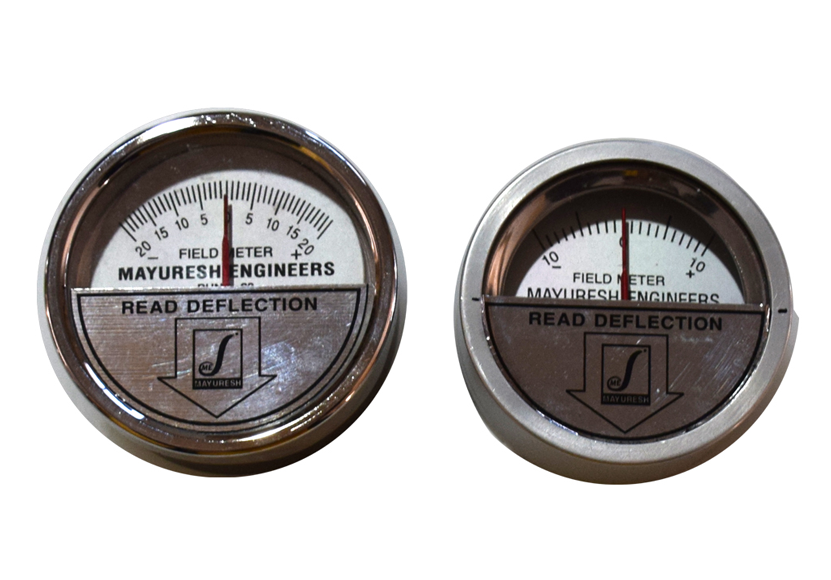

The indicator is used for checking the residual field after demagnetisation. With a centre zero it has 10 divisions on either side. Each division corresponds to approximately one guass. In use the indicator is held in hand so that the arrow points towards the point of test and then slowly moved towards this point until it establishes contact with it. This is a delicate instrument and care should be taken that the pointer does not overshoot the scale. It should be stored away from areas of high magnetic field.

Dry Powder Blower - Spray Bottles - Centrifuge Tube - ASTM Test Piece - BHEL Test Block - High Current Cables - Prods - Plugs - Contact Block - Residual Field Indicator - Light Assembly - Trolley Mk3.
